Device Interface - Luna Audiometer Interface

Before users can import Luna Audiometer test results into Enterprise Health they must first create an export file from the Luna Screening Audiomenter software. Once the file has been exported from the Luna Screening Audiomenter software and saved to the user’s local computer, navigate to the Luna Audio Import tool in Enterprise Health .

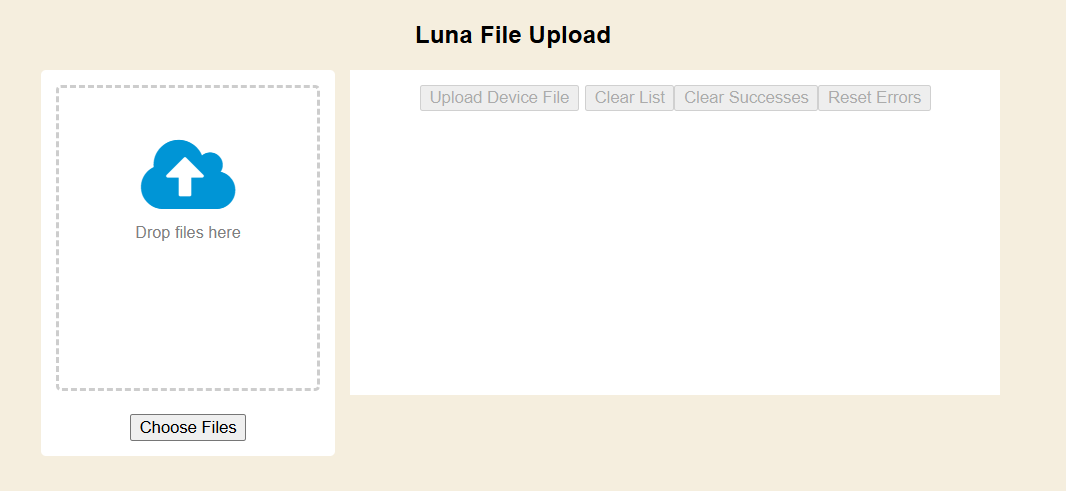

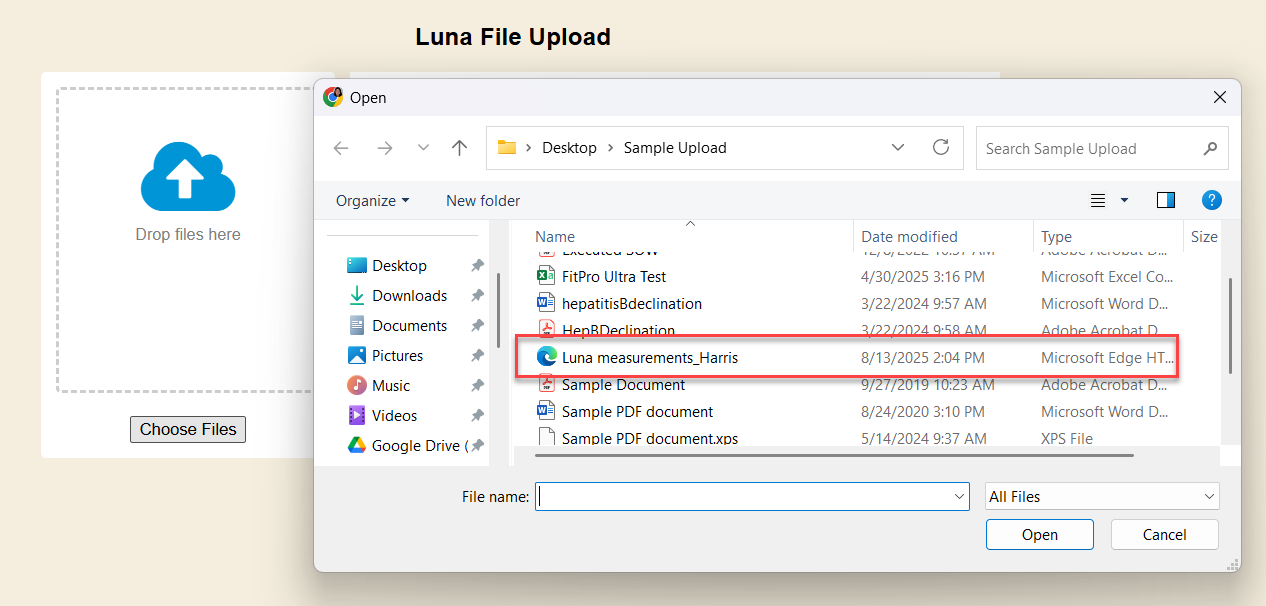

Select the Choose Files button to browse to your local drive to select the file to be imported, or drop and drag the file into the file upload box.

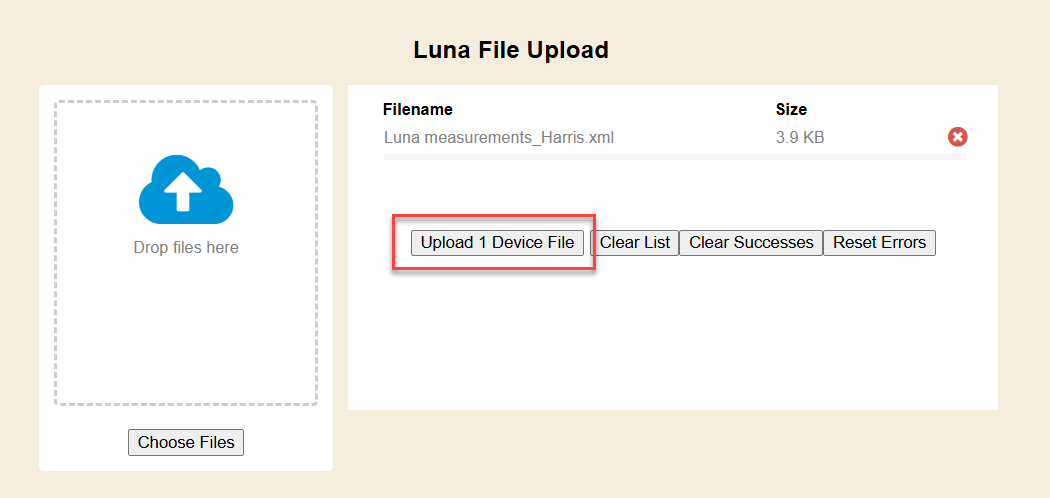

Once the file has been selected, the test(s) to be imported will display on the right side of the upload tool. If any test(s) need to be removed from the import, users may select the red and white X button to remove a test or click the Clear List button to remove all tests and start over. When all files to be uploaded display on the right side of the tool, select the Upload Device File button to import the test results.

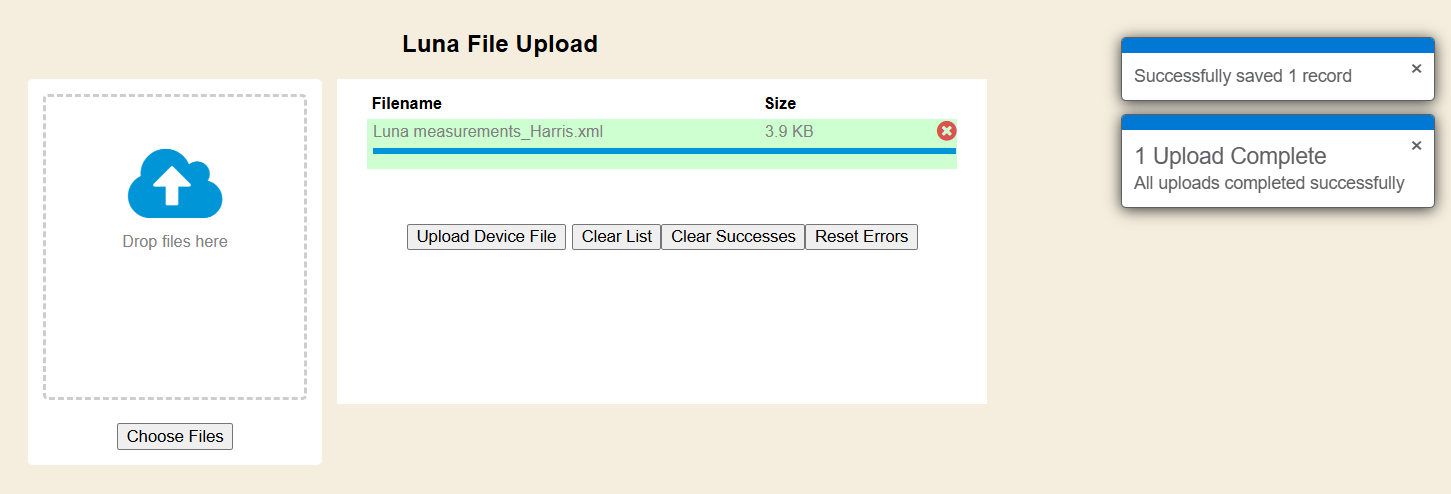

Users will see a confirmation message in the upper right hand corner of the application confirming the file uploaded successfully. Each test that is uploaded will display in green and display a message that the upload was complete and display the document ID of the document that was imported.

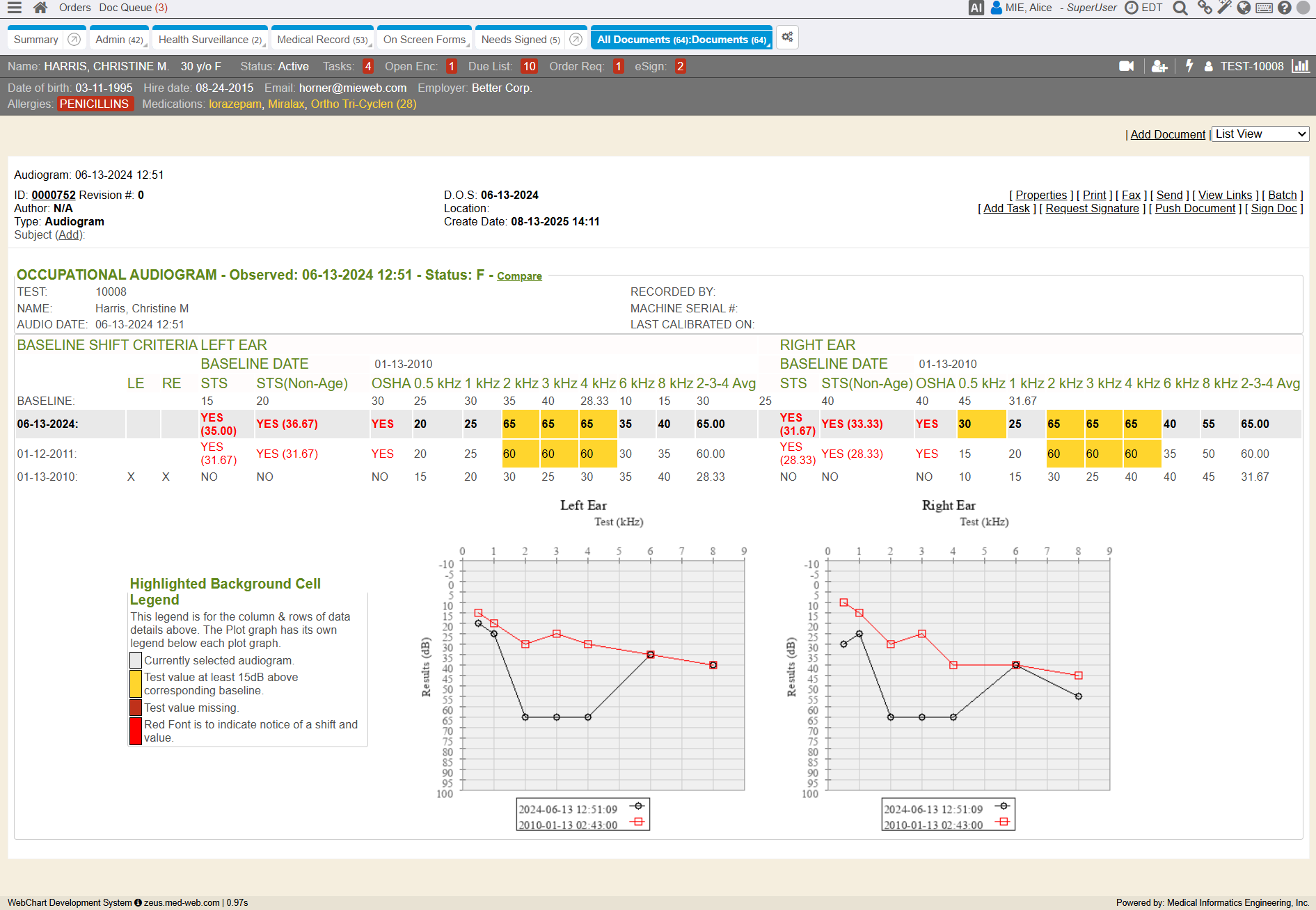

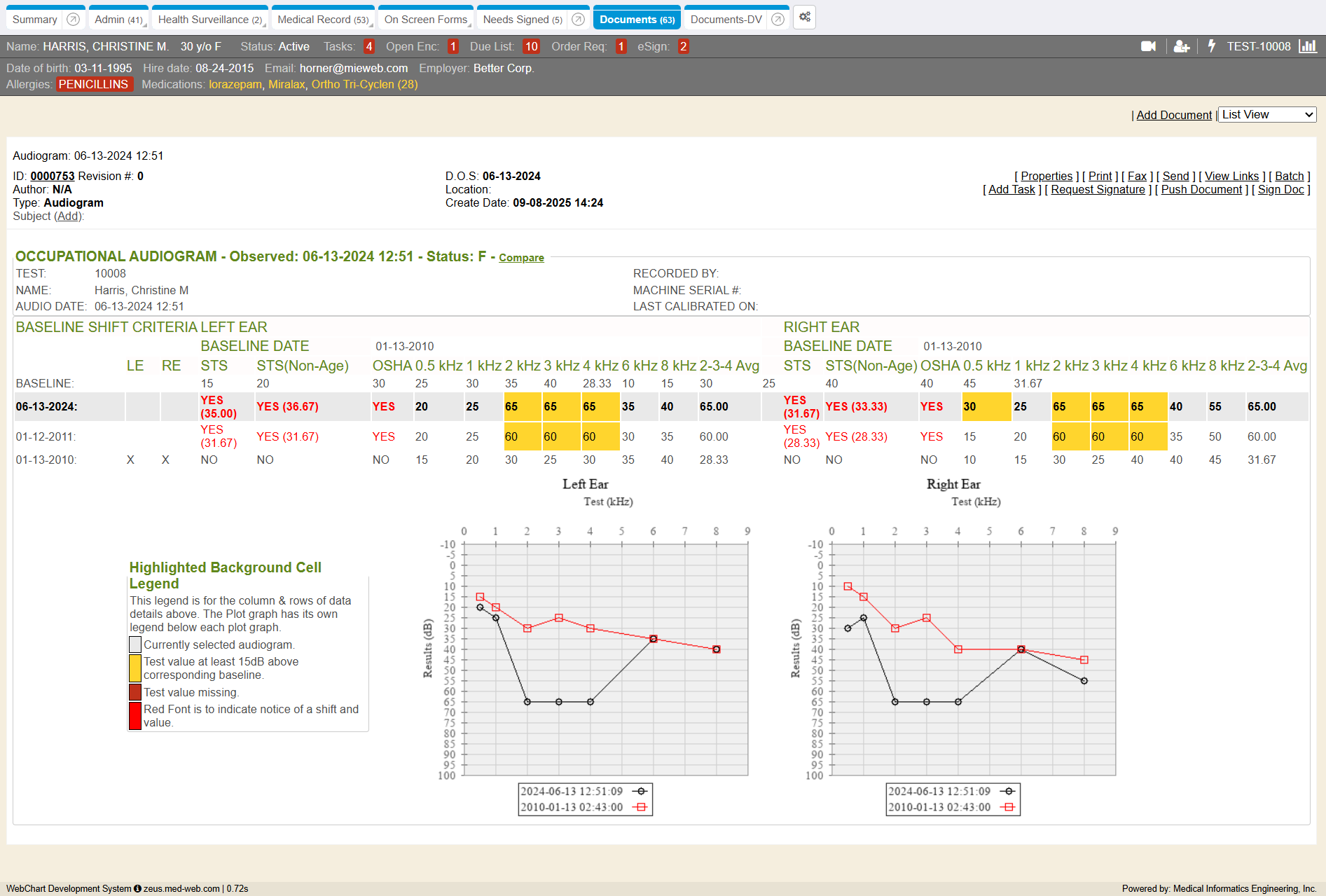

Users will see the discrete summary of uploaded results in the Medical Record:Audiogram chart tab, as well as a stand alone document in the Documents tab.
